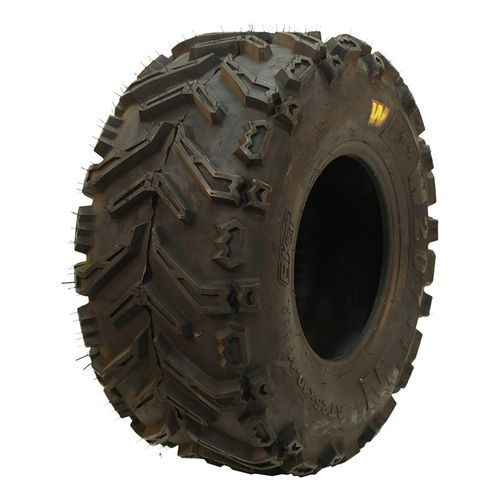

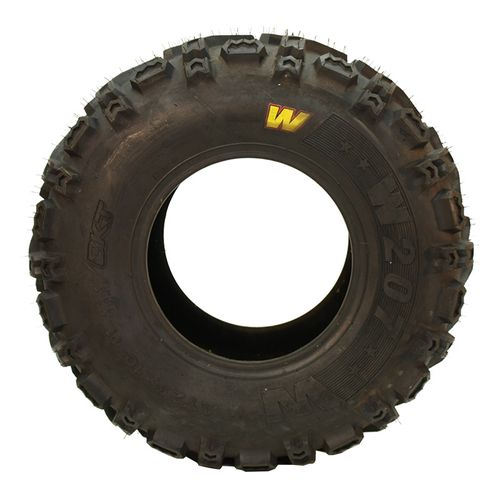

ELDORADO WING – W207

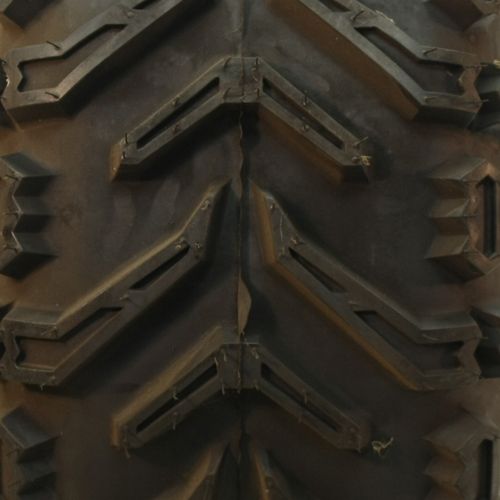

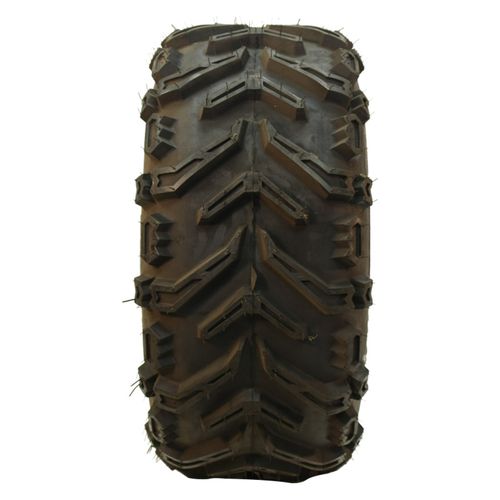

Featuring a tough 6-ply casing and a directional lug pattern with separate center section, the Eldorado Wing – W207 is one tough tire for off-road ATV or UTV use. Lugs extend up to the sidewall for protection and traction, and the Wing – W207’s wide profile and low pressure provide flotation on soft surfaces. Features & Benefits 7 psi inflation 22/32″ tread depth Tough 6-ply carcass resists cuts and punctures Exceptional traction and handling Wraparound lugs at shoulder protect sidewall and enhance traction Tubeless design Wing – W207 Tire Specifications Size UTQG Max. Load Inflation Pressure Tread Depth Rim Width Range Sect. Width Tread Width Overall Diam 24/9.00–11 N/A 365 lbs 7 psi 22/32nds 7″ 9″ N/A 24″ 25/8-11 N/A 355 lbs 7 psi 22/32nds 7″ 8″ N/A 25″ 25/10.00–11 0 420 lbs 7 psi 22/32nds 8″ 10″ N/A 25″ 24/8.00–12 N/A 310 lbs 7 psi 22/32nds 7″ 8″ N/A 24″ 25/10.00–12 0 420 lbs 7 psi 22/32nds 8″ 10″ N/A 25″ 25/11-10 N/A 455 lbs 7 psi 22/32nds 9″ 11″ N/A 25″ 22/8.00–10 0 275 lbs 7 psi 22/32nds 7″ 8″ N/A 22″ 22/11-10 N/A 385 lbs 7 psi 22/32nds 9″ 11″ N/A 22″ 23/8-10 N/A 300 lbs 7 psi 22/32nds 7″ 8″ N/A 23″ 23/10.00–10 0 375 lbs 7 psi 22/32nds 8″ 10″ N/A 23″ 25/11-12 N/A 455 lbs 7 psi 22/32nds 8″ 11″ N/A 25″ 24/8.00–11 N/A 320 lbs 7 psi 22/32nds N/A 8″ N/A 24″ 25/8.00–12 N/A 340 lbs 7 psi 22/32nds N/A 8″ N/A 25″ 23/8.00–11 N/A 290 lbs 7 psi 22/32nds N/A 8″ N/A 23″ 25/13.00–9 0 535 lbs 7 psi 22/32nds N/A 13″ N/A 25″
